EPIC 500 Q  |  15W – 20W – 30W

Product category: LED recessed downlight with rim
Adjustability: 355° – Tilting 30°
Power: 10W – 15W
Light source: LED cob integrated
CRI > 90
CCT: 2700K – 3000K – 4000K
Luminaire luminous flux 3000K:
15W – 748 lm
20W – 748 lm
30W – 1602 lm
Optic: Lens, backward optic for high visual comfort
UGR < 16
Screening angle: 45°
Beam angle: 15° – 25° – 36° – 60°
Driver: External, Included
Insulation class: II
Driver input: 220 – 240 Vac / 50-60 Hz
Control: ON-OFF, 0-10V, DALI, TRIAC
Luminaire input
515: 34-36 Vdc / 350 mA
520: 34-36 Vdc / 500 mA
530: 34-36 Vdc / 700 mA
IP grade: IP20

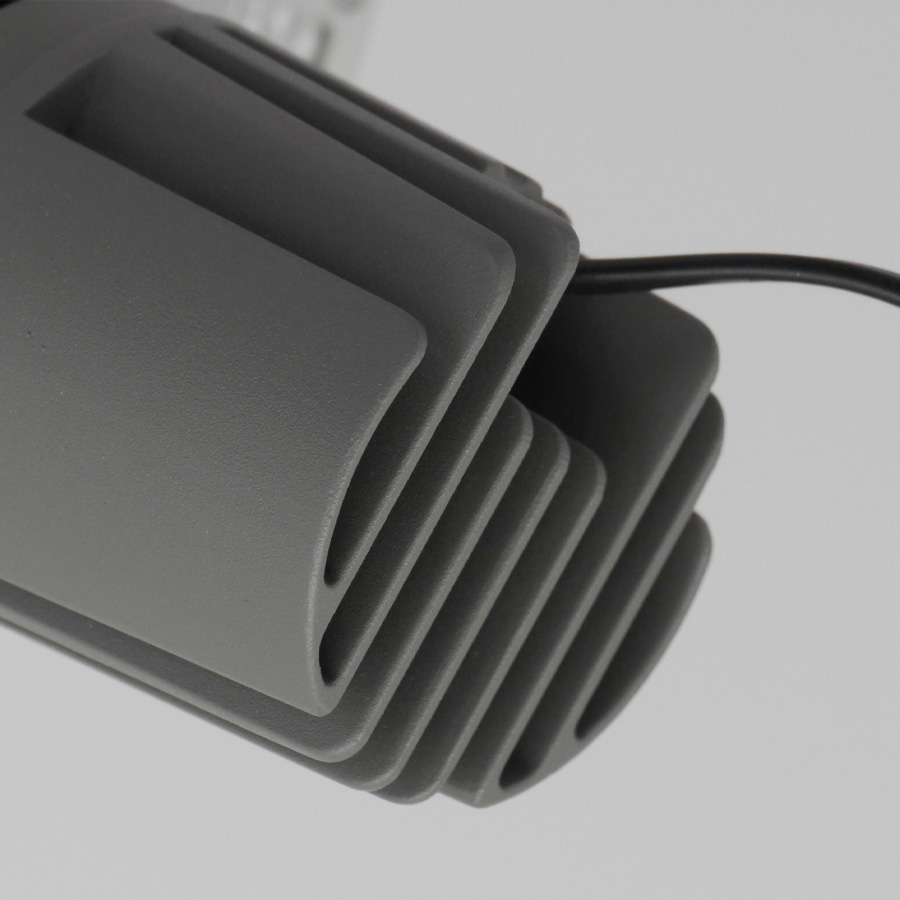

Material: Entirely made of die-cast – turned – molded aluminum
Body surface treatment: Electrostatic spray processing
Reflector finish: Matt white – Matt black – Reflective nickel – Reflective gold
Optical accessories: Honeycomb louver anti-glare, Blade lens, Diffusing lens
Dimension: 135 x 135 x H 170 mm
Cut off: 125 x 125 mm

disegno tecnico
simboli
disegno tecnico
simboli epic 500 q
page 1 of 2
DOWNLOAD AREA
CODE COMPOSITION

LL-EPIC-X-X1-X2-X3-X4-X5-X6



X MODEL – POWER: 515 – 15W / 520 – 20W / 530 – 30W

X1 INSTALLATION FRAME: Q

 X2 REFLECTOR FINISH: W / B / S / GD

X3 CCT: SW / WW NW

X4 OPTIC: 15° / 25° / 36° / 60°

X5 OPTICAL ACCESSORIES: HB Honeycomb / B Blade / D Diffusing

X6 CONTROL: 1 ON-OFF / 2 0-10 / DALI / 4 TRIAC
