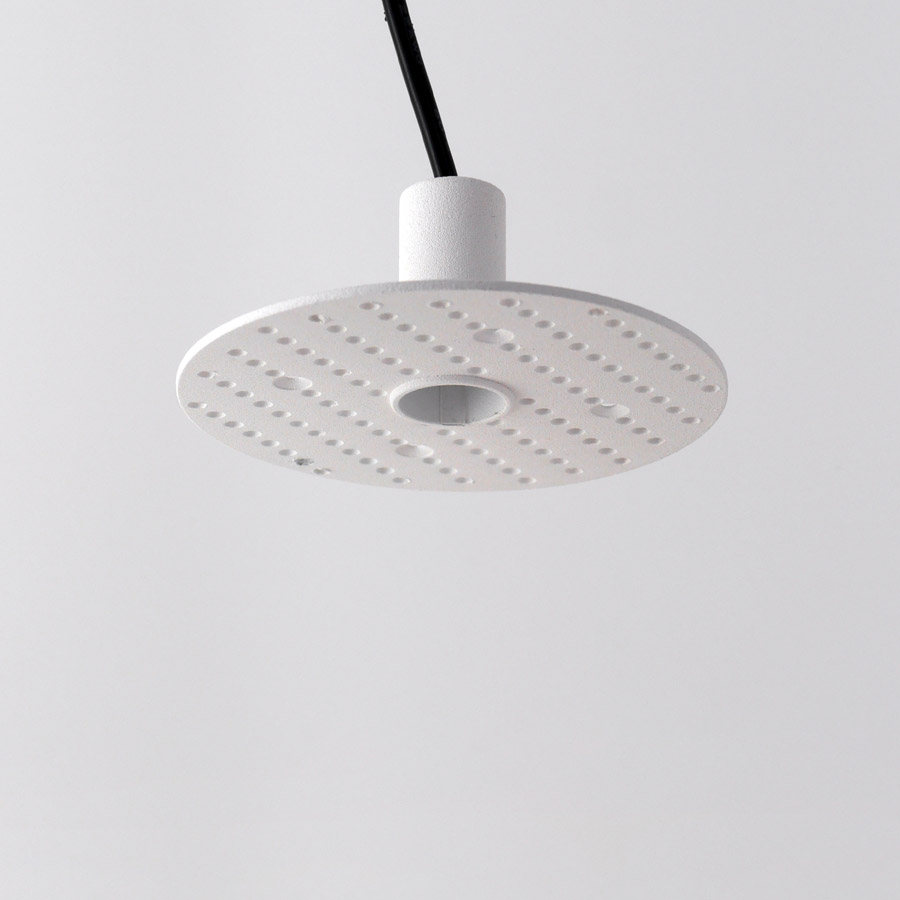

PARI 16/90  |  1W  |  Ø 16 mm

Product category: LED trimless recessed downlight
Adjustability: Fixed
Power: 1 W
Light source: chip LED
CRI > 90
CCT: 2700K – 3000K – 4000K
Luminous flux 3000K: 28 lm
Optic: PMMA diffuser
Beam angle: 48°
LED Driver: External, not included
Input: DC 2.8 – 3.2 V / 350 mA
Material: Die-casting aluminum
IP grade: IP44
Insulation class: III
Surface treatment: Electrostatic spray processing
Finish: White – Black
Cut off: Ø 25 mm
Total dimension: Ø 85 x H 35 mm

blank
blank
blank
blank
page 1 of 2

PHOTOMETRIC SPECIFICATIONS 3000K

photometric data

CODE COMPOSITION

LL-PARI16/90-X-X1-X2-X3

X POWER: 1

X1 FINISH: W / B

X2 CCT: SWWW / NW

X3 BEAM ANGLE: 48°
